Why Tonearm Geometry Matters

The primary goal of proper tonearm geometry is to ensure the stylus exerts equal pressure on both groove walls. The Nasotec Swing Headshell
maintains this balance throughout the entire record, ensuring that sound reproduction remains perfectly balanced between the left and right
channels.
Experience more detail, a more natural tone, and superior tonal balance. The improvement in sound quality will exceed your expectations.


1. Superior Tracking Performance
The Swing Headshell provides consistent tracking across the entire record, eliminating the typical performance gap between the inner and outer
grooves.

■Balanced Movement: Two precision-tuned springs create a "well-balanced swing," allowing for flawless tracking from the first track to the last.
■The "Short Arm" Effect: You can think of the Swing Headshell as a secondary, "micro" tonearm. Its soft joint allows this short, lightweight
  mechanism to follow the groove vibrations more delicately and with perfectly balanced force.
■Deep Groove Contact: Because the swing mechanism is light and flexible, the stylus can seat itself deeper in the groove. This allows it to track
  both side walls with equal pressure, a performance improvement we have verified through rigorous LP test records.


2. Minimized Tonearm Resonance
Most vibrations generated by the cartridge are dissipated through the swing joint, meaning only a negligible amount of vibration ever reaches
the main tonearm.

■Resonance Decoupling: In our comparative resonance tests, tonearms equipped with the Swing Headshell performed significantly better than
  standard tonearms.
■Superior Stability: Thanks to the mechanical decoupling provided by the joint, this system manages resonance more effectively than traditional
  "one-body" headshells or integrated tonearms.


3. Extended Stylus Lifespan

■Reduced Friction: The flexible swing mechanism reduces excessive pressure on the stylus, preventing uneven "one-sided" wear.
■Cantilever Protection: Because the Swing Headshell maintains equal pressure on both groove walls, it prevents the stylus cantilever from bending
  or becoming skewed over time.



[ Global user gallery ] - Click here
[Manual] English / German
Patent: Korea and USA

WHY 'SWING' IMPROVES THE SOUND? - German

https://www.youtube.com/watch?v=-W4wxZX5l8Y : Swing headshell test video - This video shows how Swing headshell is aligning itself to the tangential direction.  15-3-2016

https://www.youtube.com/watch?v=ei7NjQ_7QxY

https://www.youtube.com/watch?v=MvGNTkJ79jw : This is the test to see how Swing headshell reduce the tracking error angle. There are no null points.

https://www.youtube.com/watch?v=M9BMmY1YX0k : Swing headshell is responding to the off-centered groove.

Test by Hanze HiFi in Netherlands

Comparison of the noise floor: Left - Nagaoka Top-Q headshell, Right - Swing Headshell, tested by Nasotec

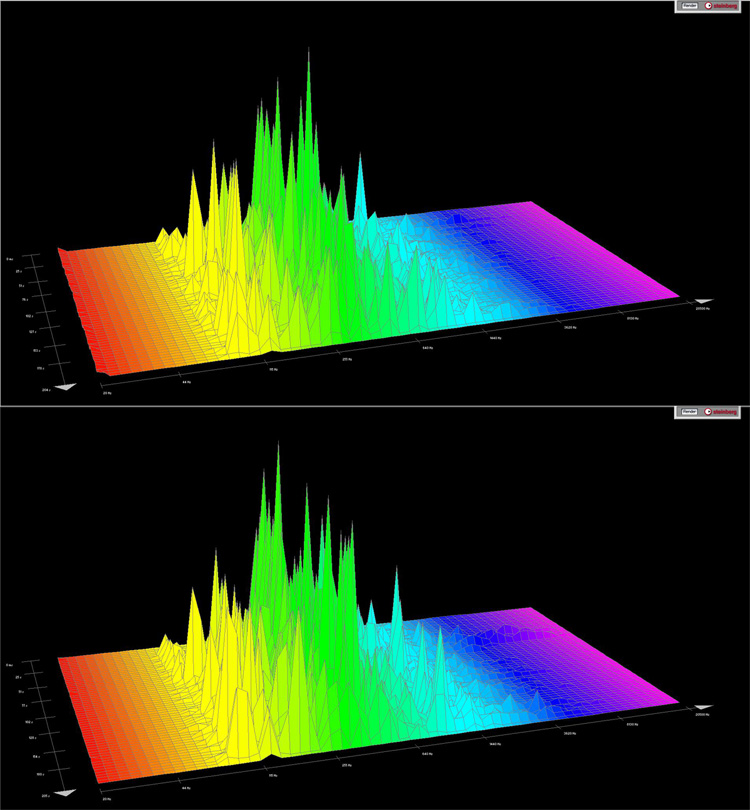

3D Frequency analyzer screenshot
Test: 20.05.2017 from Germany / Frequency range: 20 Hz ~ 20.5 kHz

[Test condition]
Top: Standard headshell / Bottom: Nasotec Swing headshell
Both are installed at a Clearaudio Solution with Nasotec outer ring & mat typ B and record weight. Tonearm: SME 3009
The recording is done from the 12” “Joachim Witt – Tri Tra Trullala (Herbergsvater)”.
No rumble filter and same recording level.

Swing headshell keeps always same pressure on both groove walls.
